The Venable Model 9X50 Series offers advanced hardware and software features designed specifically for electro-mechanical servo loop stability analysis

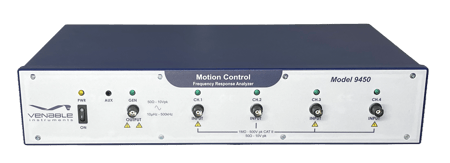

9450 NB

The Venable 9X50 Series of Motion Control Frequency Response Analyzers extends the leading-edge analog and digital technology, with advanced DSP, found in Venables’ FRAs. This single, comprehensive hardware and software system adds carrier modulation and demodulation capability,  enhanced oscillator output with no discontinuities when changing frequency or amplitude, and programmable single pulse oscillator output to support Motion Control applications (electro-mechanical servo loops).

Key features include:

  • Carrier modulation/demodulation capability (for use with LVDT/RVDT sensors)
  • Enhanced continuous oscillator output (no discontinuities when changing frequency or amplitude)
  • All 9X50 models feature 10uHz to 500kHz gain phase measurement bandwidth and up to 4 input channels protected to 600 Vpk
  • Includes gain/phase measurements to provide the loop transfer function for transducer and control systems



The Venable Difference

Key Features of Venable Frequency Response Analyzers

noun_isolation_221949

Integrated Isolation

All Venable instruments have a built-in floating oscillator and channel isolation to 600Vpk, eliminating the need for additional injection transformers or voltage reduction probes.

noun_Scale_2028

Modular, Scalable Design

Venable is the only manufacturer with a modular architecture purposely designed for fast and cost-effective upgrades.

Stability Analysis Software

Stability Analysis Software

The 9X50 Model includes Venable’s Stability Analysis Software, which now supports Motion Control Applications.

Learn More
Z540.1 Level II Calibration

Z540.1 Calibration

Venable is the only Frequency Response Analyzer manufacturer to offer the optional Z540.1 Calibration Certification, a requirement of most companies adhering to ISO 9001 Standards.

The Venable Difference

Features that Put You in the Driver's Seat

scalability

Venable's modular architecture supports instrument scalability, protecting your investment.

Texas

Based in Austin, Texas, USA, Venable Instruments provides direct support for technical and application questions, calibrations, and repairs.

noun_credit_628652

Venable Instruments rents FRAs on a monthly basis and supports a lease to own program.

warranty

Venable provides a standard one year warranty which covers any defects in material or workmanship on new instruments. Optional 3 and 5 year extended warranties are available.
